Agents and MCP

Draughtsman is built so that an AI agent is just another author. It exposes eight tools over the Model Context Protocol, over HTTP with a token and over stdio on the same machine, and the diagram your colleague has open updates when the agent writes.

Connect Claude Code over HTTP

Make a token

Sign in, open Tokens in the top bar, give the token a name, choose how long it lasts (7 days to 1 year; 90 by default), and tick Read-only if the agent should only look. The secret (dst_…) is shown once, with a ready-made command underneath it. Any signed-in person can make tokens for themselves, not only administrators. A token carries its owner's role.

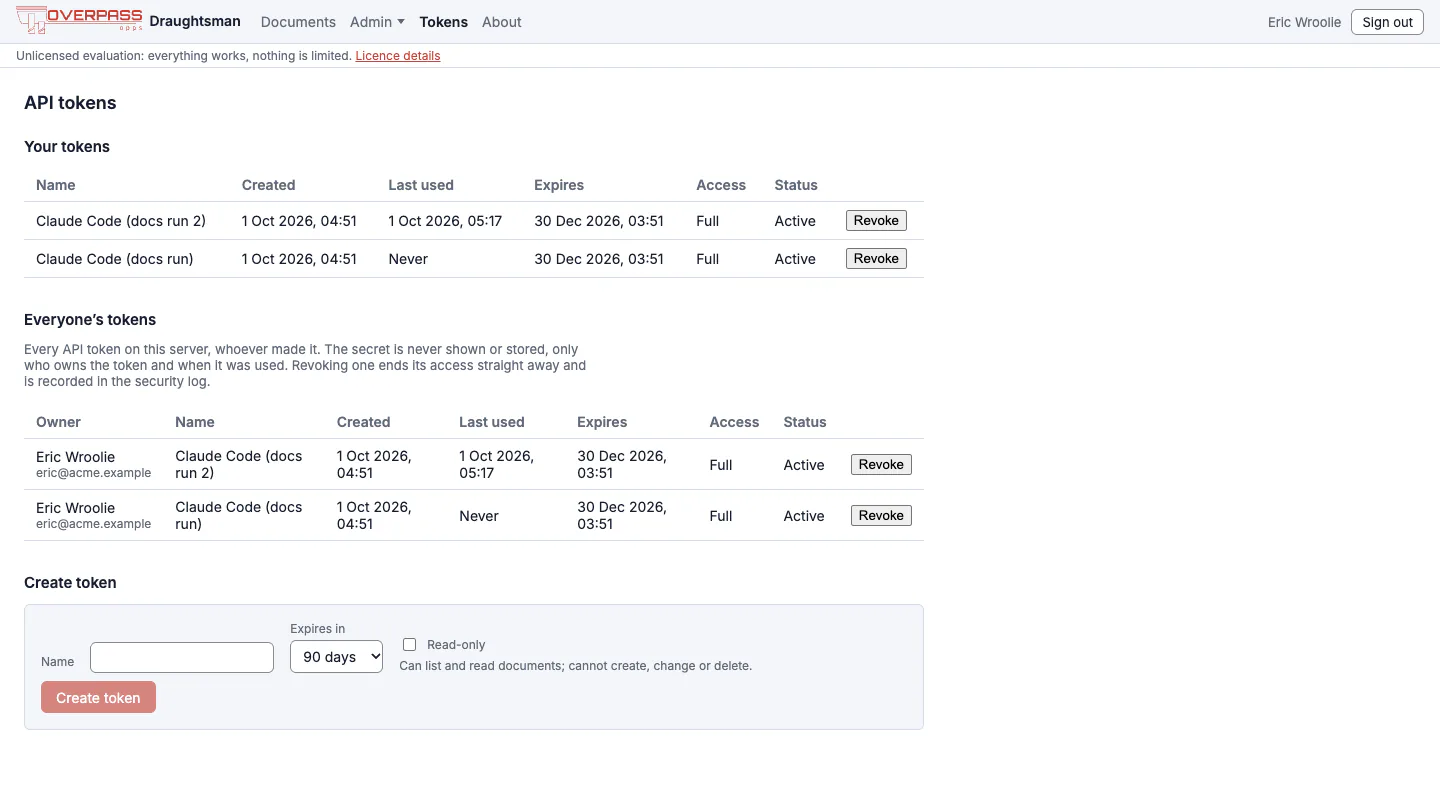

The Tokens page. Secrets are never listed; an administrator sees everyone's tokens and can revoke any of them.
Add it to Claude Code
```
claude mcp add --transport http draughtsman https://draughtsman.example.com/mcp \
  --header "Authorization: Bearer dst_..."
```
For a server on your own machine use http://127.0.0.1:5180/mcp. We ran this command with Claude Code 2.1.286 against the documentation instance (project scope, under the name draughtsman-docs, with the instance's own address), then ran claude -p --mcp-config .mcp.json --strict-mcp-config asking it to call list_documents. It connected and printed the eleven titles. Claude Code shows a project-scoped server as Pending approval in claude mcp list until you approve it by running claude; a normal user-scoped add does not.
If you forget the token

Every route needs one, including /mcp. Without it you get:
```
HTTP/1.1 401 Unauthorized
WWW-Authenticate: Bearer

Authentication required. Send an API token as 'Authorization: Bearer <token>' (create one in the web app under API tokens, or POST /api/tokens). This server does not support OAuth.
```
Claude Code prefixes that with Dynamic Client Registration rejected (HTTP 401), which is its own wording for "I tried OAuth"; it does not mean OAuth is expected. The fix is always the token.

Connect over stdio

When the agent runs on the same machine as the data folder, draughtsman mcp --stdio needs no token and opens no port. It reads the data folder directly, so it is as trusted as anyone who can run it there.

claude mcp add draughtsman -e DRAUGHTSMAN_DATA=/path/to/data -- /path/to/draughtsman mcp --stdio

We ran this against a restored copy of the documentation instance (project scope, name draughtsman-stdio): Claude Code listed the documents, returning 11. A raw JSON-RPC check showed the server answering initialize with draughtsman 0.1.0 and protocol 2025-06-18, listing the eight tools, with nothing but JSON on standard output (logging goes to standard error).

Do not use plain dotnet run as the stdio command

It prints a Using launch settings from… line to standard output before the server starts, which breaks the JSON-RPC stream. Use the packaged draughtsman binary: draughtsman mcp --stdio. Point DRAUGHTSMAN_DATA at the same folder the web server uses, or the agent will see no diagrams.

The eight tools

Tool	Arguments (* required)	Returns
`list_documents`	`query`, `offset`, `limit` (1 to 200)	Items, newest updated first, with a total
`read_document`	`id*`, `format`: `json` (default), `dsl`, `outline`, `mermaid`	The diagram as text. `outline` is one line per element and cheap for a prompt.
`create_document`	`title`, `type`, `content`, `format` (`dsl`, `mermaid`, `sql`, `json`, `drawio`, `visio` with the file base64-encoded), `layout`, `actor`	`{ id, warnings }`
`patch_document`	`id`, `ops`, `layout` (`none`, `affected`, `all`), `actor`	The whole patched document and a `checkpointVersionId`
`render_document`	`id*`, `format`: `svg` or `pdf`, `scale`	SVG markup, or a base64 PDF when the optional server-side PDF component is on. An unlicensed copy's render carries the evaluation notice; `read_document` never does
`diff_documents`	`id`, `fromVersion`, `toVersion`	Added, removed, changed and moved elements
`critique_document`	`id*`	Deterministic structural findings, each with severity and the element ids involved
`get_schema`	`type`	The document schema, and for a type its kind vocabulary and shape libraries

What an agent can do

Read. list_documents, then read_document as outline for a cheap look or dsl before editing. get_schema teaches it the kinds for a type (an unknown kind is accepted silently by patch_document, so it should check).
Create. create_document from DSL, Mermaid, SQL, JSON, a draw.io file or a Visio file (see Moving from draw.io, Visio and Lucidchart). With layout: true the layout engine places the nodes; without it, nodes with no position stay unplaced.

Patch. patch_document takes addressable operations, never a whole-document replace: addNode, removeNode, updateNode, addEdge, removeEdge, updateEdge, moveEdge, setProp, removeProp, restyle and setFlythrough. An unknown operation or a missing target fails the whole call and writes nothing. The server checks nobody else wrote in between, so a concurrent edit is never overwritten.

[
  { "op": "updateNode", "id": "n_api", "set": { "label": "Orders API v2" } },
  { "op": "addNode", "node": { "id": "n_cache", "kind": "cache", "label": "Redis", "shape": "rounded" } },
  { "op": "addEdge", "edge": { "id": "e_3", "kind": "data", "from": { "node": "n_api" }, "to": { "node": "n_cache" } } },
  { "op": "restyle", "target": "node", "id": "n_cache", "style": { "fill": "#fde68a" } }
]

Render and check. critique_document after a patch; render_document for a picture. The server render draws the organisation's default theme; for a branded picture take the diagram to the editor and export. PNG is not available over MCP.
Write a fly-through. setFlythrough replaces the camera path whole; see Fly-through.
Sequence diagrams are written as messages in time order; addEdge with before or after inserts mid-stream, and moveEdge reorders.

Two examples of real output, from the documentation instance (the first is read_document with format: "outline", the second critique_document):

Shop platform (architecture)
nodes:
  n_users [actor] "Shoppers"
  n_gw [api-gateway] "API gateway" in c_vpc
  n_orders [service] "Orders service" in c_vpc
  n_db [database] "Orders DB (Postgres)" in c_vpc
  ...
edges:
  e_4: n_gw -> n_orders [flow]
  e_7: n_orders -> n_db [data] "read/write"
  e_10: n_orders -> n_fraud [flow] "score"

{"findings":[]}

The agent's edit appears in your editor

An open editor polls for newer versions about once a second and merges them under your unsaved local edits, reporting any clash. We opened a diagram, had an agent add a node over MCP, and the new box appeared in the open page 0.3 seconds after the patch returned. The agent's edit is not on your undo stack: your Cmd+Z never reverses an agent. Before applying it the server stored a checkpoint of the diagram as it was, so History can restore it.

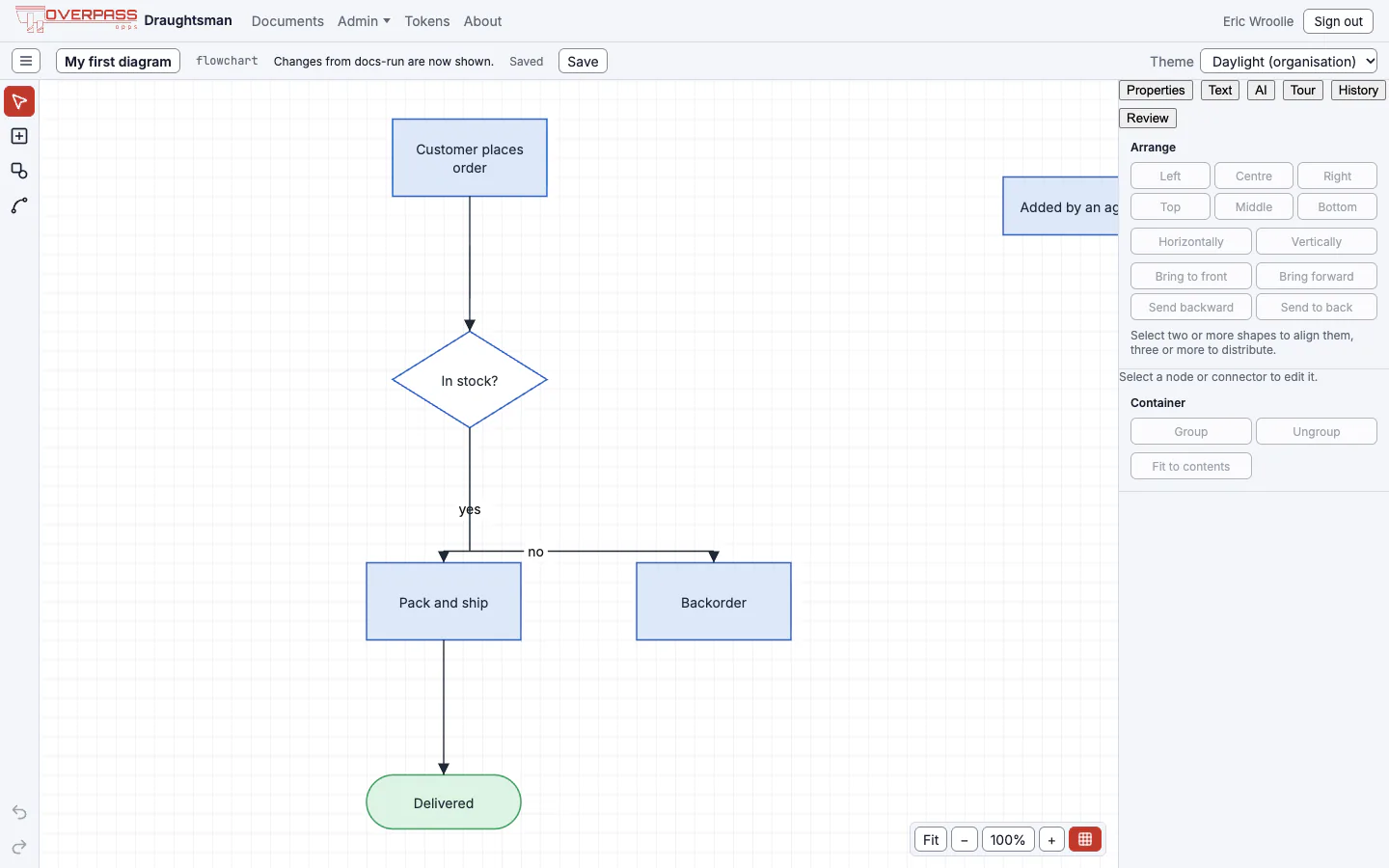

The editor with the quick-start diagram open, showing a new box labelled Added by an agent at the right of the flowchart. — A node added over MCP, visible in an editor that was already open.

Who is recorded as the author

Over HTTP the writer is the token's owner. Pass actor: "agent:<name>/<model>" on create_document and patch_document to be recorded as an agent as well: the diagram gets a provenance entry (agent, model, time, created or updated, the element ids touched), and the security and audit trail show the person who owns the token as the owner. The label can only annotate, never impersonate: a user:… or malformed value over HTTP is refused. Over stdio the label is self-reported.

Limits to know

No delete, rename, restore or licence tool over MCP, no PNG render, and workspace is always default.
A read-only token can list, read, render, diff, critique and fetch schemas, but not create or patch. A token can never mint tokens, manage users or reach the admin pages, even when an administrator owns it.
The rate limit is 300 /mcp calls per user per minute (limits.mcpPerUserPerMinute), counting every call, across all of a user's tokens. Over it, the server answers 429 with Retry-After.
A tool failure is a normal tool result with isError set and a sentence that says what to correct, for example Unknown patch op 'frobnicate'. Expected one of: addNode, removeNode, …
With a reverse proxy, turn buffering off for /mcp and raise the read timeout; see Deployment.

The skill file

The archive includes SKILL.md, written for an agent: the DSL rules agents most often get wrong, the tools with real argument names, the failures you will meet word for word, and the document types. Put it where your agent reads skills and it can draw without a human explaining the format first. The full HTTP and MCP reference is the API guide, also in the docs folder of the archive.
